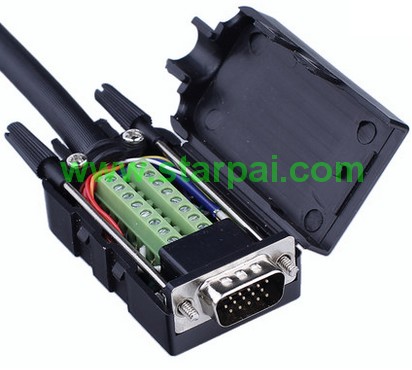

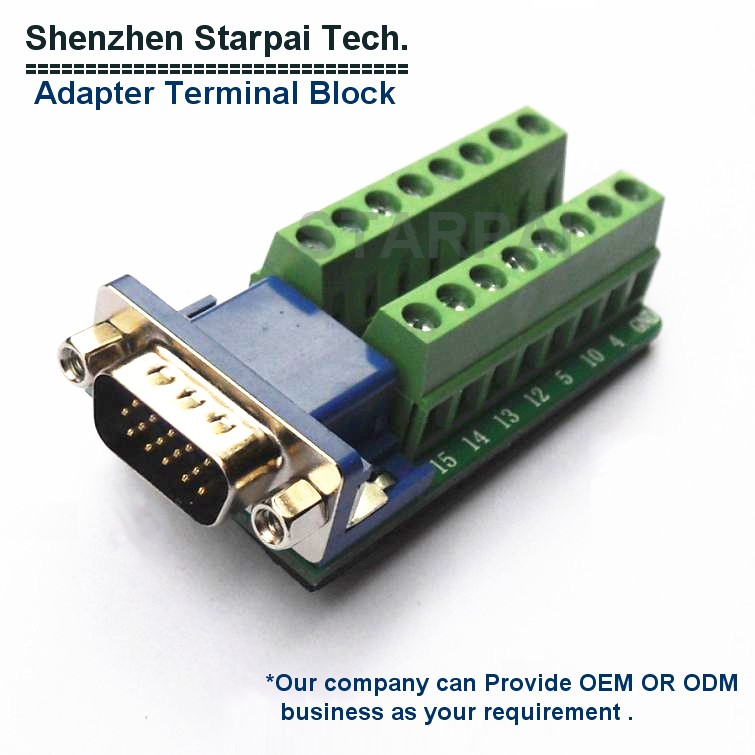

Signals Breakout Board Serial Port Header - DB15 Male / Female terminal block adapter

DB15 female to terminal

The female DB-9 to 9-position terminal block adapter provides connection points for all of the DB-15s pins and the protective ground.

They can be used for practically any application requiring a female / male DB-15 connector.

Specifications & Features:

Female / Male DB-15 connector

9-Position terminal block accepts 14-30 AWG solid or stranded wire

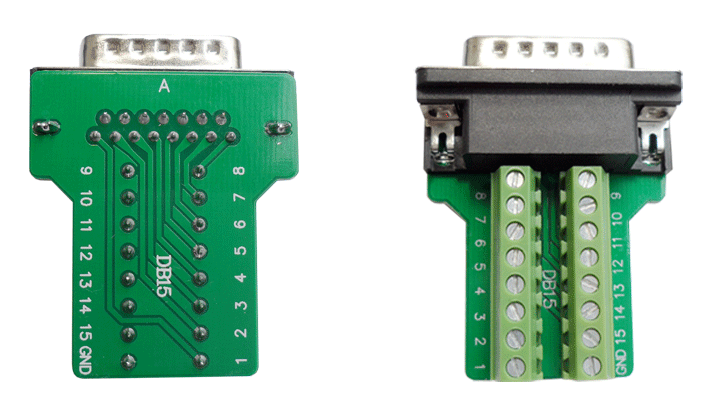

Connection points are labeled with pin number

Can be used for practically any application requiring a female / male DB-15 connector

Supports non-standard AMX & Crestron control ports

No soldering or crimping required

Cost effective and reliable cable termination

Terminal blocks spacing 3.96MM, screw hole diameter 2MM, need to use a width of 2MM screwdriver for assembly

Dimensions - Height 20mm, Width 42.5mm, Depth60mm

Default Package included :

1 pair ( 1* female DB15 adapter +1* male DB15 adapter)

Note: if you need 2 pieces of Male DB15 or 2 pieces of Female DB15, Please leave a message
